Rectangle GRP Sectional Water Tank
Rectangle GRP sectional water tanks feature a modular design made from high-strength SMC (Sheet MoldingCompound) panels, bolt-connected for quick, tool-based assembly. Ideal for potable water storage, thesecorrosion-free, leak-proof tanks offer flexible sizing, easy installation in tight spaces, and long-term durability-perfect for commercial, industrial, and municipal applications requiring rellable, hygienic water containment.
Product Name: Rectangle GRP Sectional Panels Water Tanks
Usage: Water Storage
Capacity:1m3-2000m3
Panel Thickness: 5-22mm
Original: China
Technical Data
SMC Panels

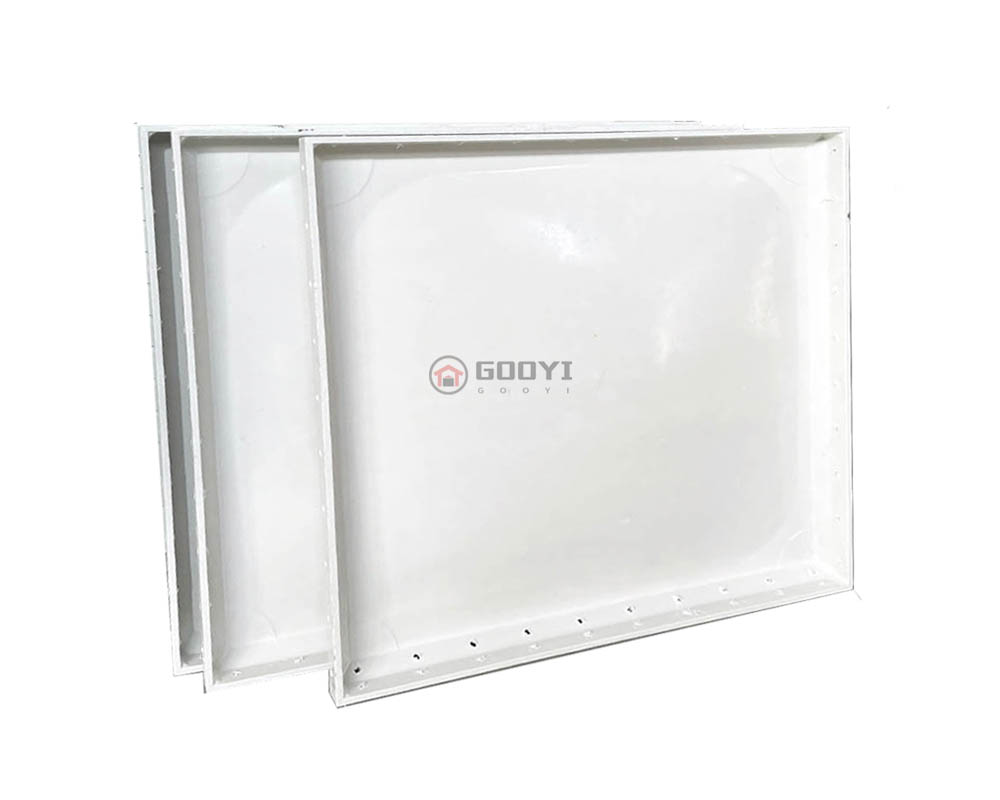

1. SMC Modular Fiberglass Panels
2.1000x1000mm,1000x500mm,
500x500mm1000x1500mm
3. Design with Round or Square Shape
Accessories Fittings
1. Provide with full set accessories
2. Material option galvanized or stainless
3. Inner steel lacing bar and steel rod support
4. Customized flange pipe opening holes

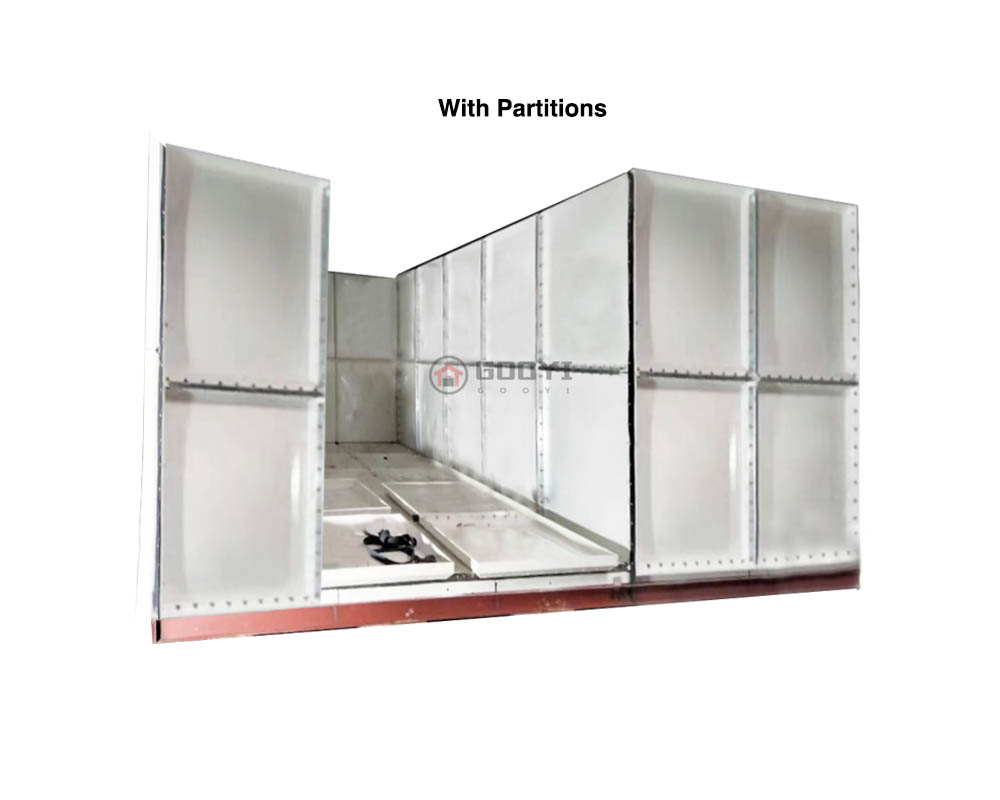

Partition Panel
1. Special Design
2. Postion Can be Located at Length or Width
Direction
3. Partition Panel Can Drill Hole if Request
Insulation Panels
1. Polyurethane Foam+Color Steel Plate
2. Thickness: 50mm
3. Weight: 3KG/M2

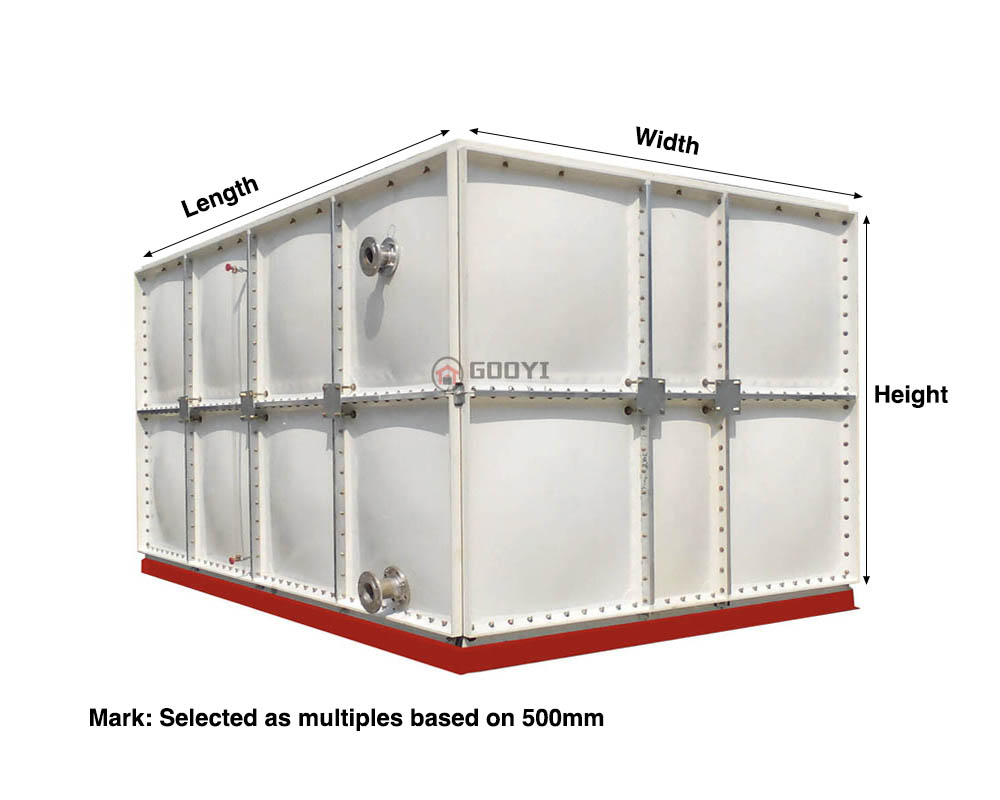

Dimesion
1. Same Volume Can be Different Dimentions
2. Height Better Equial or Less than 4m
3. Selected as Multiples of 500mm
SteelTower
1. Option Height According to Request
2. Material: Carbon Steel
3. Surface: Paint or Galvanized

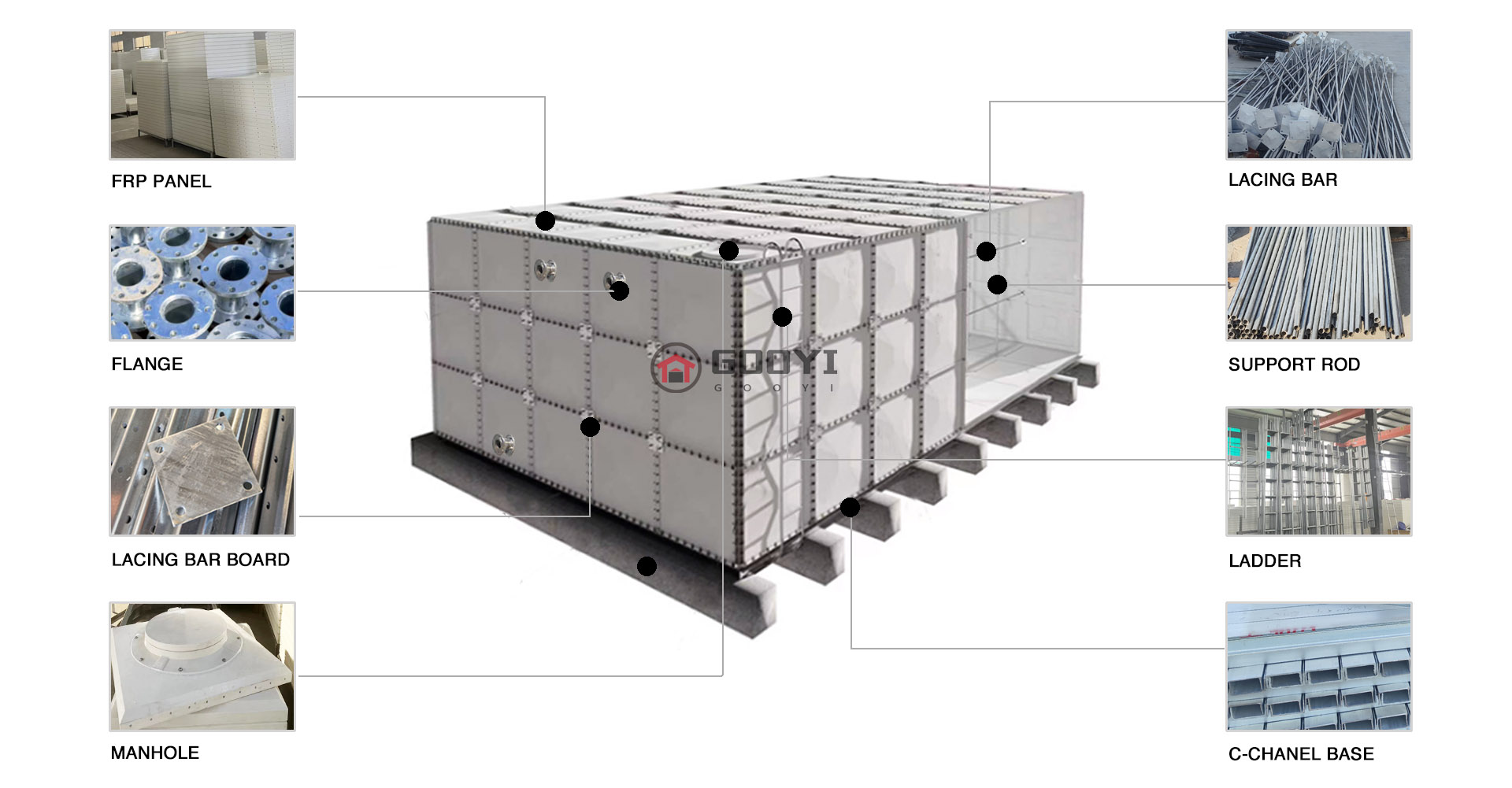

Structural
1) Water Tank Surface Structure
Constructed by assembling standard-sized SMC molded panels, GRP panel sizes such as:
1000x1000 mm
1000x500 mm
500x500mm
1500x500mm
GRP Paned thicknes ptionsindlude srm, mm. 7mm, em,1omm, 12m. 14nm. 1omm,1ernm,et, dferent ayer panedl wlbe deslgn wth dferent thicdknes These panels are asenbled
to form a rectangular water tank structure.
2) Internal Support System
Stainless steel or hot-dip galvanized lacing bar and steel support rods that provide internal structural support
3) Pipe Connections
Pipe connections are made using pre-welded flange with various sizes, includingInlet, outlet, bottom drain,overflow,The size and position of the fange ports can be customized according to customer requirements
4) Other Accessories
Bolts and nuts for connect GRP panels,Manhole cover Internal and external ladders Watelevel indicator, etc.
5) Tank Sealing Materials
A sealing belt is placed between the GRP panels to prevent leakage. Leak-proof materials such as leak sealing and glass glue.
Specification
High-Strength
Corrosion Resistance
Light Weight
Durability
Low Maintenance
Design Flexibility

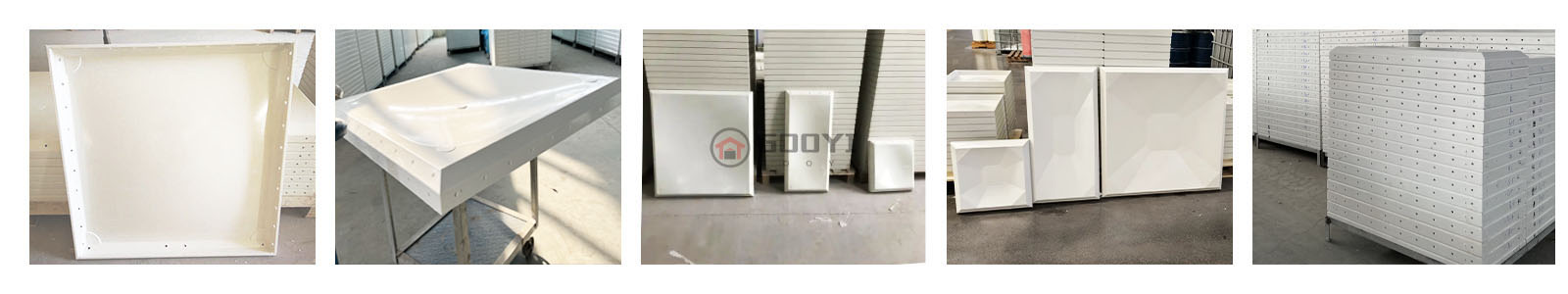

GRP/FRP Panel
GRP stands for glass reinforced plastic, FRP stands for fiberreforced plastic orfiberglass reforced plasticReinforcement: Glass fibers (in the form of a mat, weave, orchop) that provide structural strength and rigidity. Matrix: Apolymer resin (most commonly Polyester, but also Vinylesteror Epoxy) that binds the fibers together, protects them fromthe environment, and gives the panel its shape and surfacecharacteristics.The result is a strong, lightweight, and highlydurable sheet material
High Strength
Corrosion Resistance
Cost Effective
Easy Install at Site
Material Gl or SS
Long Service Life

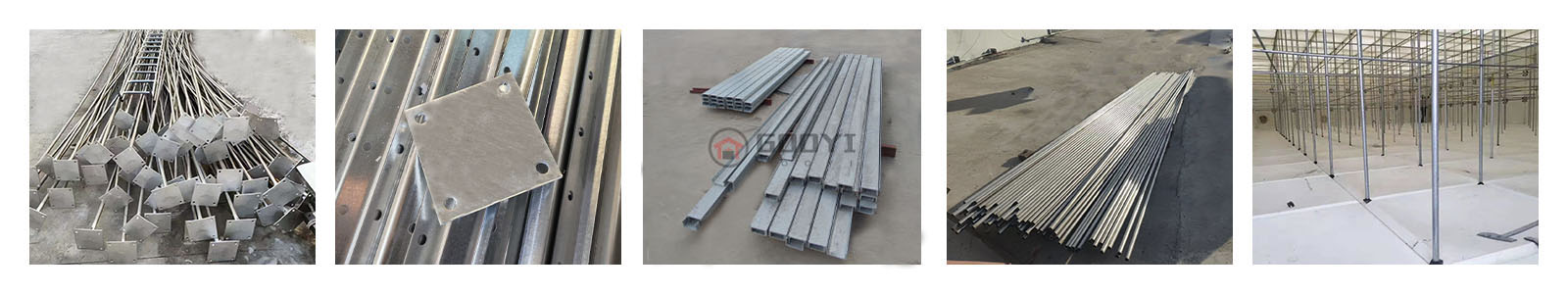

Structural Support
Structural support systerm is the most important accessoriesfor water tanks, such as lacing bar and vertical support rod,Lacing bartransfers tensile loads from the upper sections ofthe tank to the foundation, reducing stress on wall panels.vertical rods are designed to handle compressive and tensileforces from above. They enhance overall tank stability,especially in regions prone to seismic activity or extremeweather.

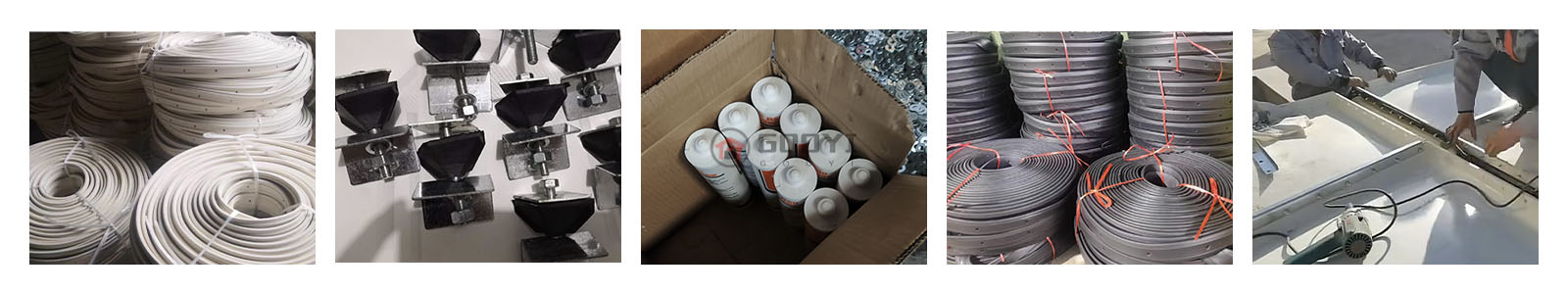

Sealing Belt Black&White
Auxiliary Angle Iron
Glass Glue
Easy to Install
Long Service Life
Easy to Maintance

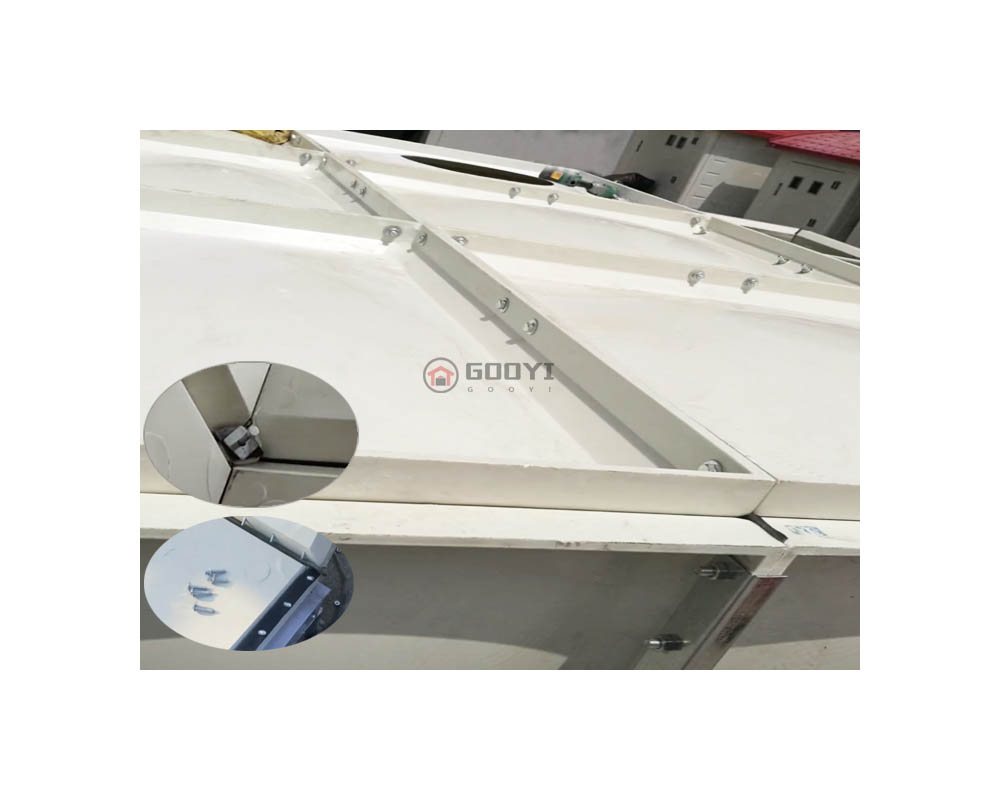

Sealing Components
The water tanks is sectional panel connection, for gap ofpanels, sealing components is import to make the water tankleak-proof, main component include, sealing belts,auxiliary (angle) iron, glass glue, with the right and good qualitysealing accessories, make the water tanks don't have anypossible for leak water, also for long time use, if any point has aleak problem, it is easy to change or repaire with thesecomponents.

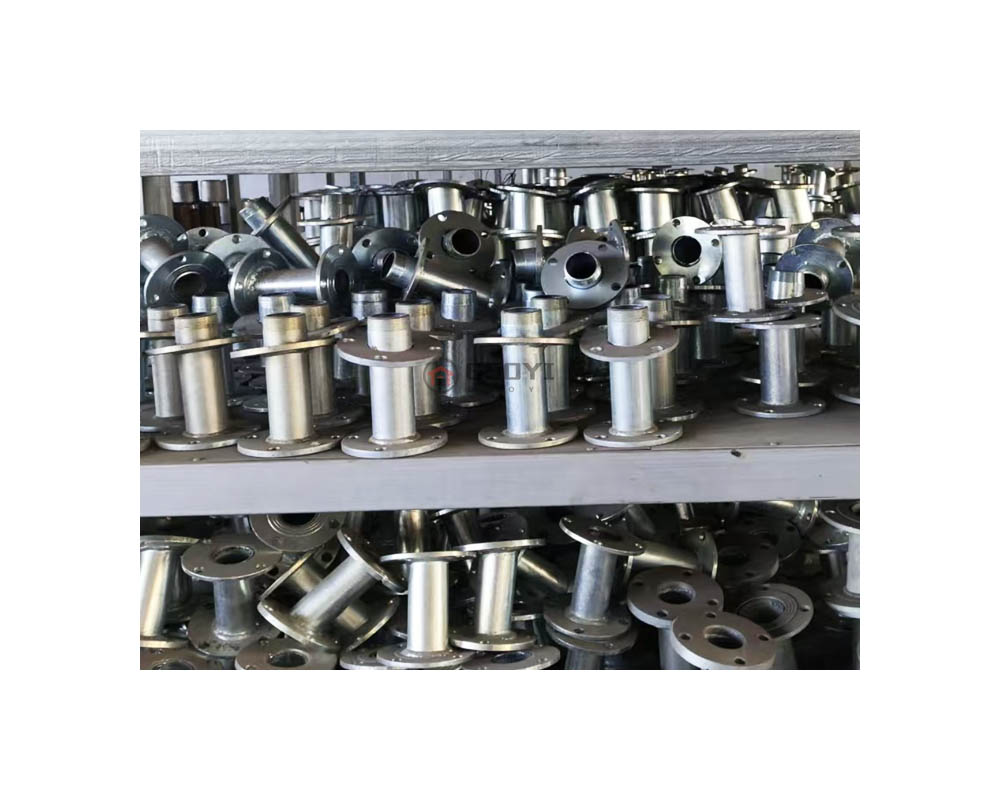

Customized Flange
Manhole Cover
Water Meter
Inner and Outer Ladder
Roof Air Vent
Easy to Install

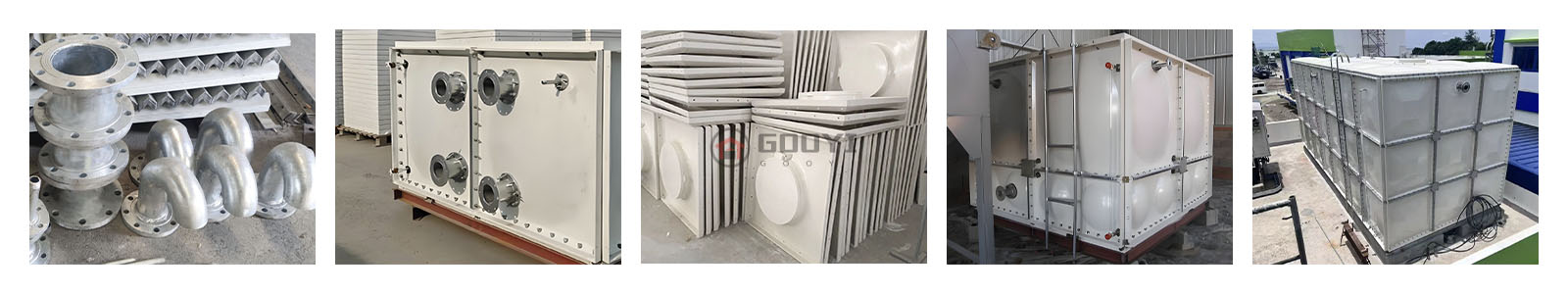

Other Accessories
The type and size of pipe connections forthe water tank can becustomized according to custoner requirements. By default,we will provide at least four types of flanges, including the inletflange, outlet flange, drain flange, and overflow flange.Additionally, we will supply a manhole cover, an air vent, bothinternal and external ladders, a water level meter, and othernecessary accessory fittings. if you require any customizedfittings, we can discuss and confirm the details.
Application
POTABLE WATER STORAGE
Ensures safe, clean, and odorlessstorage for drinking water
FIRE PROTECTION SYSTEMS
Offers reliable emergency water reserves
for firefighting
AGRICULTURAL IRRIGATION
Stores water and chemicals for farming, with corrosion resistance.
COMMERCIALBUIL DING
For offices, malls, and hotels.Industrial Process Water Tanks

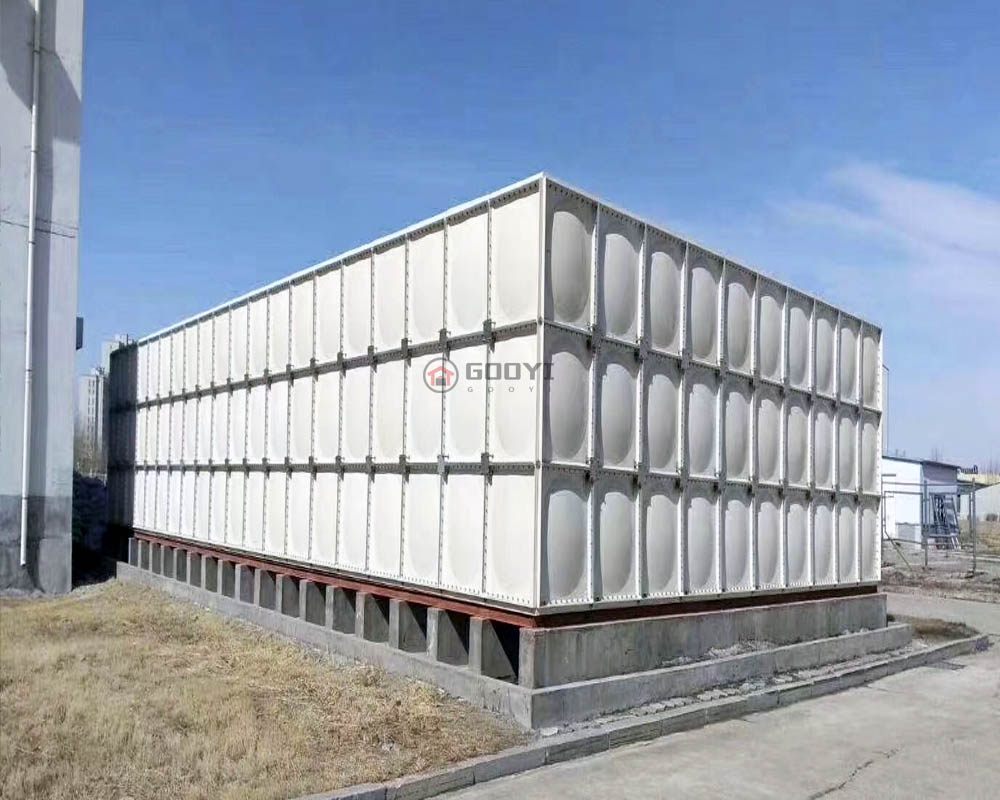

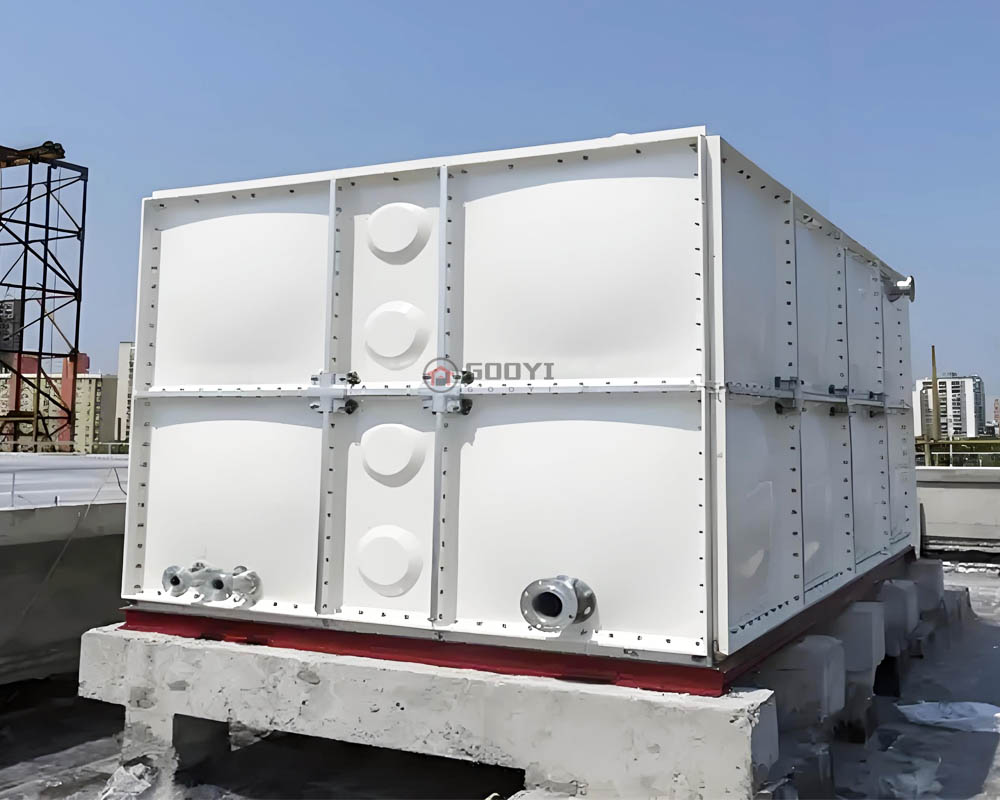

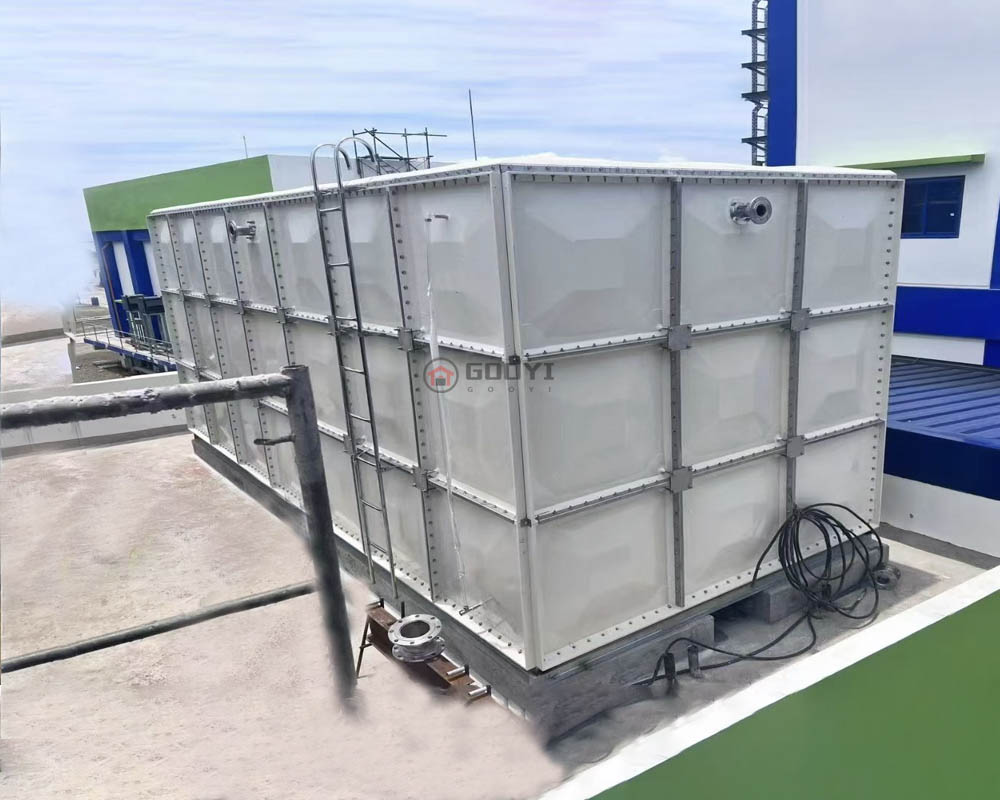

Case Gallery
GRP (Glass Reinforced Plastic) tanks are versatile solutions for numerous applications. They safely store potable water wthoutaffecting taste or odor In frefighting systems, they offer a dependable water reserve. Thelr corrosion resistance makes them idealfor agricultural irigation and various industrial processes, including chemical storage. These tanks are also perfectly suited forunderground installation and can efficiently handle hot liquids.
FAQ
What is GRP and FRP? Is it the same material?
Yes. GRP (Glass Reinforced Plastic) and FRP (Fiber Reinforced Plastic) generally refer to the same composite material made of resin reinforced with fiberglass. GRP water tanks are widely used due to their corrosion resistance, lightweight structure, high strength, and long service life.
Do you offer custom sizes and capacities?
Yes. We provide customized GRP water tanks in various dimensions and capacities to meet project requirements. Tank sizes can be designed according to available installation space, water storage needs, and local standards.
What is a rectangular GRP sectional water tank?
A rectangular GRP sectional water tank is a modular storage tank assembled from molded GRP panels. The sectional design allows flexible capacities, easy transportation, and convenient on-site installation, making it suitable for commercial, industrial, municipal, and residential applications.
How is the tank assembled on-site?
The tank is assembled by connecting GRP panels with bolts, sealing materials, and internal reinforcement structures. Our team can provide installation guidance, assembly drawings, and technical support to ensure proper installation and performance.
Do you provide installation services or technical support?
Yes. We offer comprehensive technical support, including design consultation, installation instructions, assembly drawings, and remote or on-site assistance when required. Our engineering team helps ensure smooth project execution.
What are the advantages of GRP tanks over steel or concrete tanks?
GRP water tanks offer several advantages:
- Excellent corrosion resistance
- Lightweight and easy transportation
- Fast on-site assembly
- Low maintenance requirements
- Hygienic and suitable for potable water storage
- Long service life
- Flexible modular design and capacity expansion
Compared with steel or concrete tanks, GRP tanks often provide a more cost-effective and durable water storage solution.
