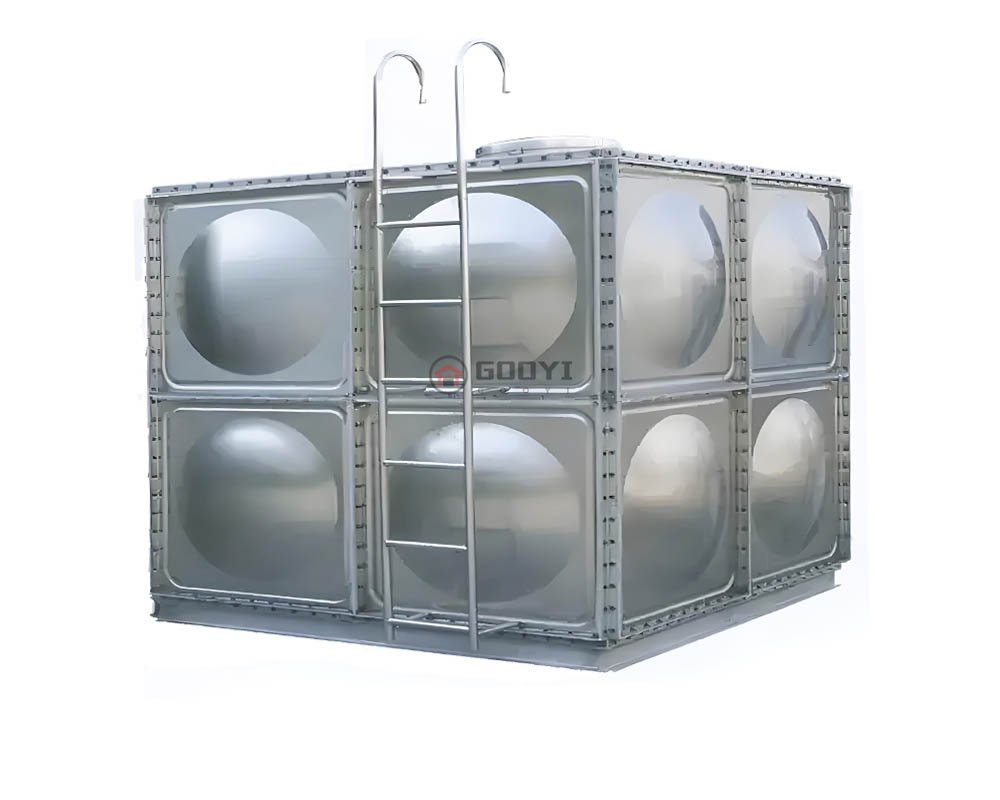

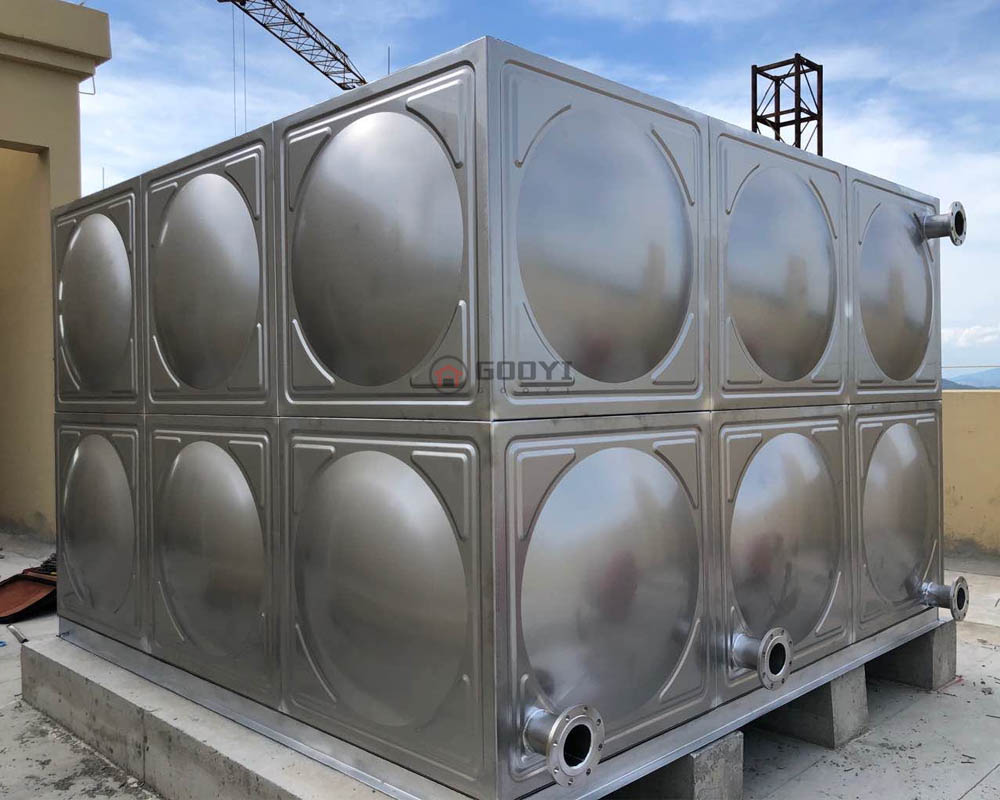

Rectangle Stainless Steel Water Tank
Rectangle Stainless Steel Water Tank made from premium-grade SS304 or SS316 stainless steel, it resistscorrosion, ensures water purity, and complies with international health standards. this tank offers easyinstallation, low maintenance, and superior structural integrity. Trusted by global clients for quality and reliabity.offers superior corrosion resistance and ensures dean, safe water storage for residental, commercial, andindustrial use. Its space-saving rectangular design maximizes capacity while fitting seamlessly into tight areas.Featuring robust welding and a leak-proof structure, it's built for long-term relablity with minimal maintenanceIdeal for potable water, rainwater harvesting, and HVAC systems.
Product Name: Rectangle Stainless Steel Sectional Panels Water Tanks
Usage: Water Storage
Capacity : 1m3 - 2000m3
Panel Thickness: 2-5mm
Original: China
Technical Data
Pressed Sectional Panels
1. Pressed Modular Stainless Steel

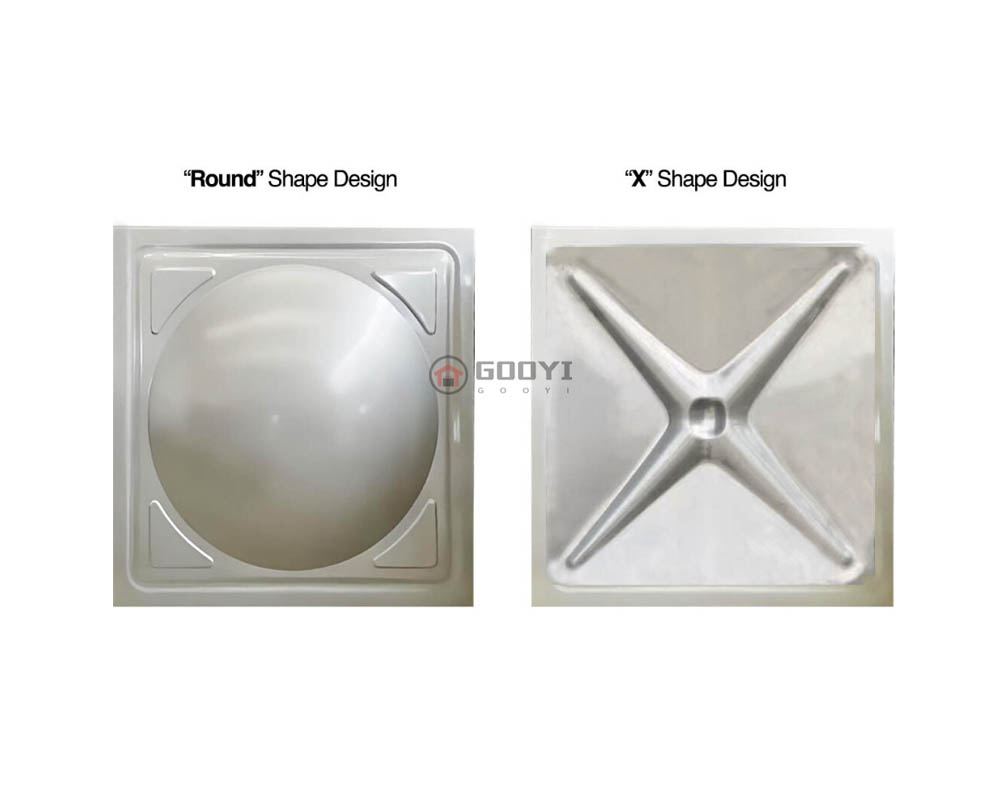

2.1000x1000mm,1000x500mm,500x500mm3. Desi
gn with Round or X Shape
Accessories Fittings
1. Provide with Full Set Accessories
2. Inner Steel Lacing Bar and Steel Rod Support
3. Customized Flange Pipe Opening Holes
Dimesion
1. Same Volume Can be Different Dimentions
2. Height Better Equial or Less than 5m
3. Dimension Selected as Multiples of 500mm

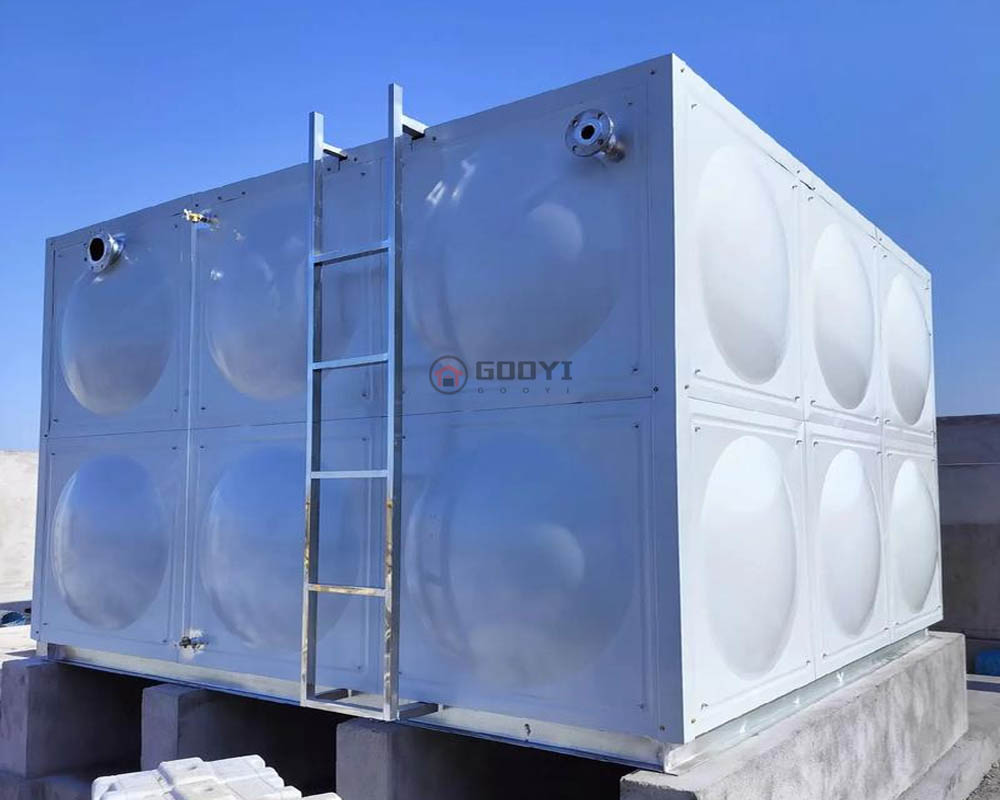

Insulation Panels
1. Polyurethane Foam+Color Steel Plate
2. Thickness: 50mm
3. Weight: 3KG/M2

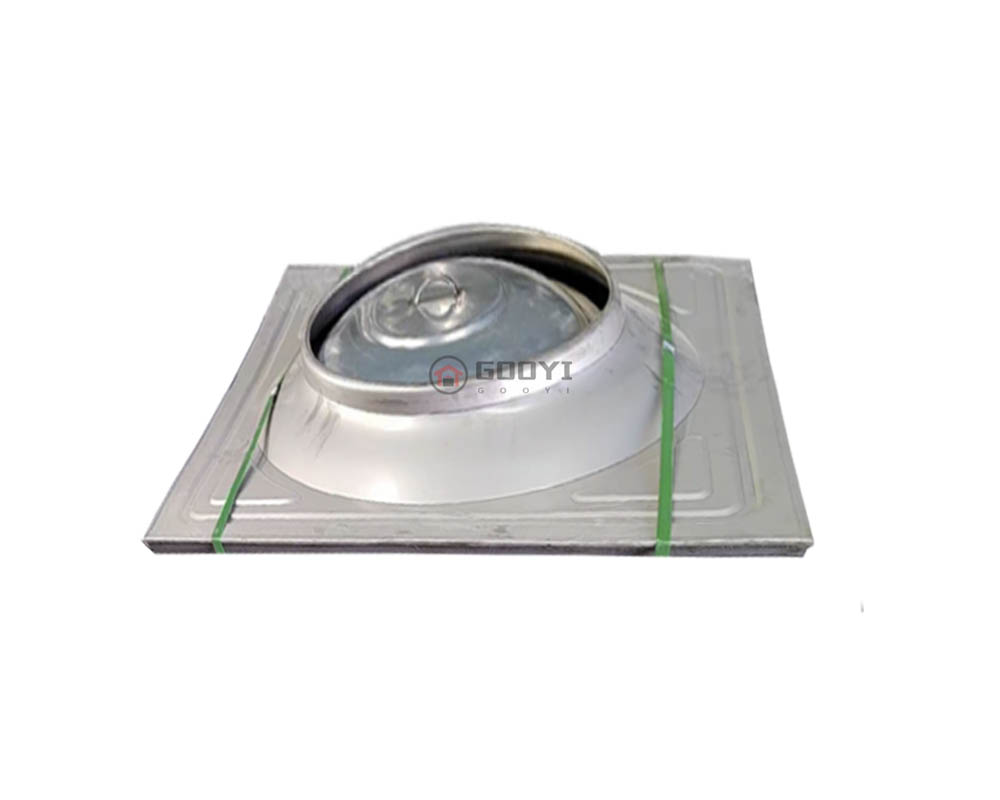

Manhole Cover
1. Special Design
2. Postion at Top Roof of SS Water Tank
3. Each Water Tank We Will Send It
SteelTower
1. Option Height According to Request
2. Material: Carbon Steel
3. Surface: Paint or Galvanized
Structural
1)Water Tank Surface Structure
Constructed by assembling standard-sized pressed moudlar molded panels, HDG panel sizes such as:
1000x1000 mm
1000x500 mm
500x500mm
StarilesPane thcness ptions mndudle mm 25mm, mm 4mm mm et, dferent ayer Ranets wel be desgn wth dferer thicknes, hese panets re asembled o form a recang ylar
watertank structure.
2) Internal Support System
Stainless steel lacing bar and steel support rods that provide internal structural support.
3) Pipe Connections
Pipe connections are made using pre-welded flange with various sizes, includingInlet, outlet, bottom drain,overfilow, The size and position of the flange ports can be customized according to customer requirements.
4)Other Accessories
Bolts and nuts for connect water tank panelsManhole cover, Internal and external ladders Water level indicator, etc.
5) Tank Sealing Materials
A sealing belt is placed between the SS panels to prevent leakage. Leak-proof materials such as leak sealing and glass glue.
Specification
High-Strength
Corrosion Resistance
Light Weight
Durability
Low Maintenance
Design Flexibility

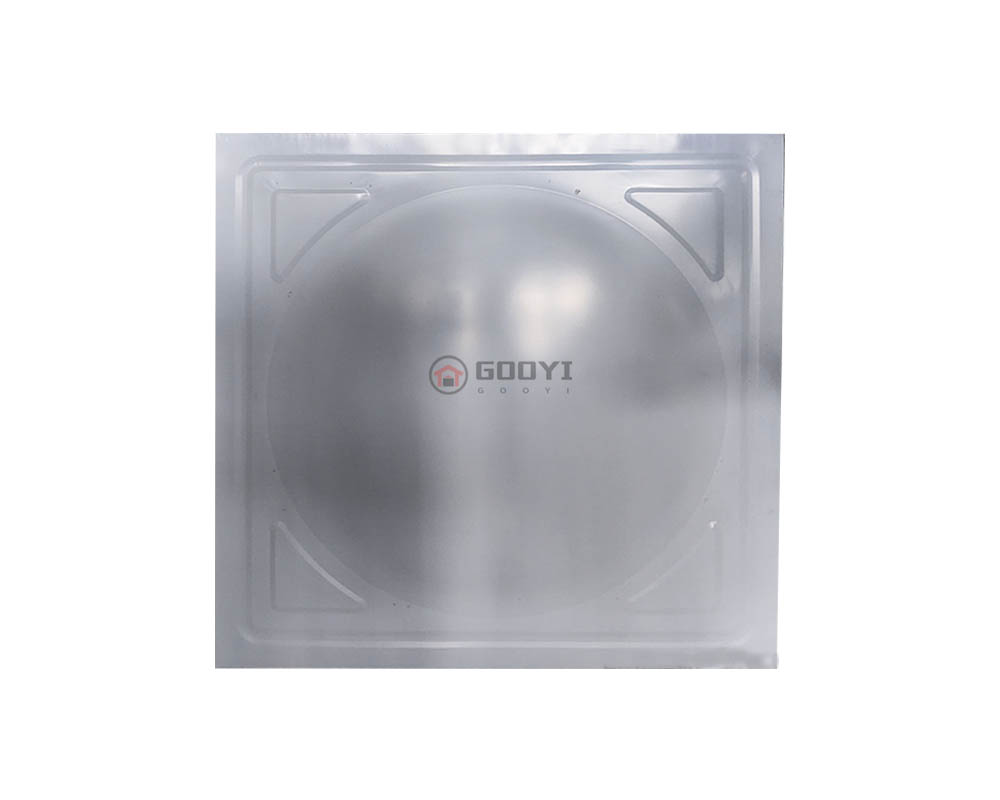

Stainless Steel Panel
Premium galvanized steel water tank panels made from high-strength, hot-dip galvanized steel (zinc coating >275g/m2)formaximum corrosion resistance. Each panel pre-drilled boltholes for fast, weld-free assembly of modular rectangular orsquare water tanks. Suitable for potable water, fire protection,and industrial storage systems. Panels are customizable in size(standard thickness: 2-5mm) and designed for easy globalshipping in flat-packed form. Ideal for contractors and OEMsseeking reliable, code-compliant water storage solutionsworldwide.
High Strength
Corrosion Resistance
Cost Effective
Easy Install at Site
Material Gl or SS
Long Service Life

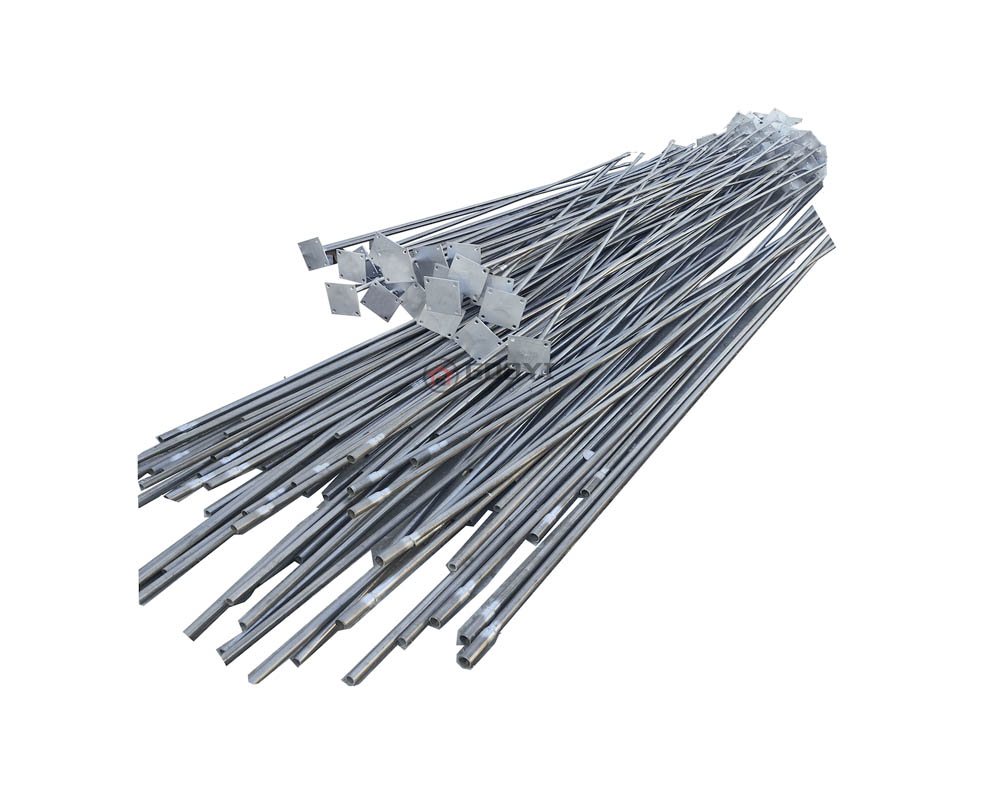

Structural Support
Structural support systerm is the most important accessoriesfor water tanks, such as lacing bar and vertical support rod,Lacing bartransfers tensile loads from the upper sections ofthe tank to the foundation, reducing stress on wall panels.vertical rods are designed to handle compressive and tensileforces from above. They enhance overall tank stability,especially in regions prone to seismic activity or extremeweather.
Sealing Belt Black&White
Auxiliary Angle Iron
Glass Glue
Easy to Install
Long Service Life
Easy to Maintance
Sealing Components
The water tanks is sectional panel connection, for gap ofpanels, sealing components is import to make the water tankleak-proof, main component include, sealing belts,auxiliary (angle) iron, glass glue, with the right and good qualitysealing accessories, make the water tanks don't have anypossible for leak water, also for long time use, if any point has aleak problem, it is easy to change or repaire with thesecomponents.
Customized Flange
Manhole Cover
Water Meter
Inner and Outer Ladder
Roof Air Vent
Easy to Install

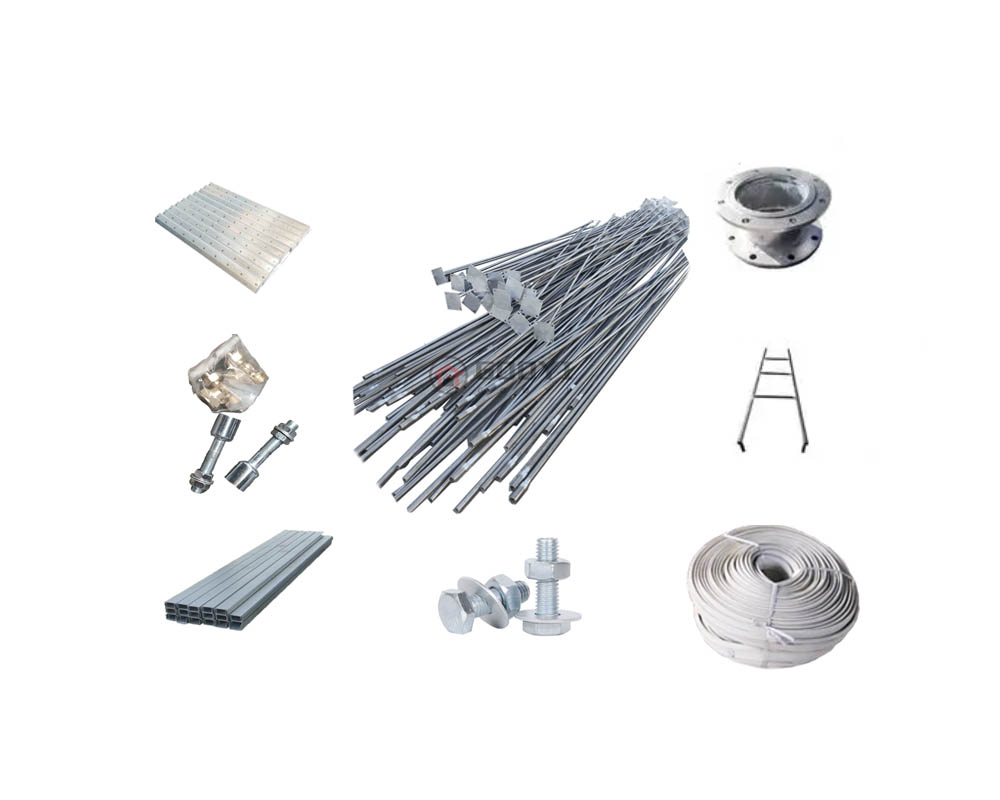

Other Accessories
The type and size of pipe connections forthe water tank can becustomized according to custoner requirements. By default,we will provide at least four types of flanges, including the inletflange, outlet flange, drain flange, and overflow flange.Additionally, we will supply a manhole cover, an air vent, bothinternal and external ladders, a water level meter, and othernecessary accessory fittings. if you require any customizedfittings, we can discuss and confirm the details.
Application
POTABLE WATER STORAGE
Ensures safe, clean, and odorlessstorage for drinking water
FIRE PROTECTION SYSTEMS
Offers reliable emergency water reserves
for firefighting
AGRICULTURAL IRRIGATION
Stores water and chemicals for farming, with corrosion resistance.
COMMERCIALBUIL DING
For offices, malls, and hotels.Industrial Process Water Tanks
Case Gallery
GRP (Glass Reinforced Plastic) tanks are versatile solutions for numerous applications. They safely store potable water wthoutaffecting taste or odor In frefighting systems, they offer a dependable water reserve. Thelr corrosion resistance makes them idealfor agricultural irigation and various industrial processes, including chemical storage. These tanks are also perfectly suited forunderground installation and can efficiently handle hot liquids.
FAQ
What is GRP and FRP? Is it the same material?
Yes. GRP (Glass Reinforced Plastic) and FRP (Fiber Reinforced Plastic) generally refer to the same composite material made of resin reinforced with fiberglass. GRP water tanks are widely used due to their corrosion resistance, lightweight structure, high strength, and long service life.
Do you offer custom sizes and capacities?
Yes. We provide customized GRP water tanks in various dimensions and capacities to meet project requirements. Tank sizes can be designed according to available installation space, water storage needs, and local standards.
What is a rectangular GRP sectional water tank?
A rectangular GRP sectional water tank is a modular storage tank assembled from molded GRP panels. The sectional design allows flexible capacities, easy transportation, and convenient on-site installation, making it suitable for commercial, industrial, municipal, and residential applications.
How is the tank assembled on-site?
The tank is assembled by connecting GRP panels with bolts, sealing materials, and internal reinforcement structures. Our team can provide installation guidance, assembly drawings, and technical support to ensure proper installation and performance.
Do you provide installation services or technical support?
Yes. We offer comprehensive technical support, including design consultation, installation instructions, assembly drawings, and remote or on-site assistance when required. Our engineering team helps ensure smooth project execution.
What are the advantages of GRP tanks over steel or concrete tanks?
GRP water tanks offer several advantages:
- Excellent corrosion resistance
- Lightweight and easy transportation
- Fast on-site assembly
- Low maintenance requirements
- Hygienic and suitable for potable water storage
- Long service life
- Flexible modular design and capacity expansion
Compared with steel or concrete tanks, GRP tanks often provide a more cost-effective and durable water storage solution.
