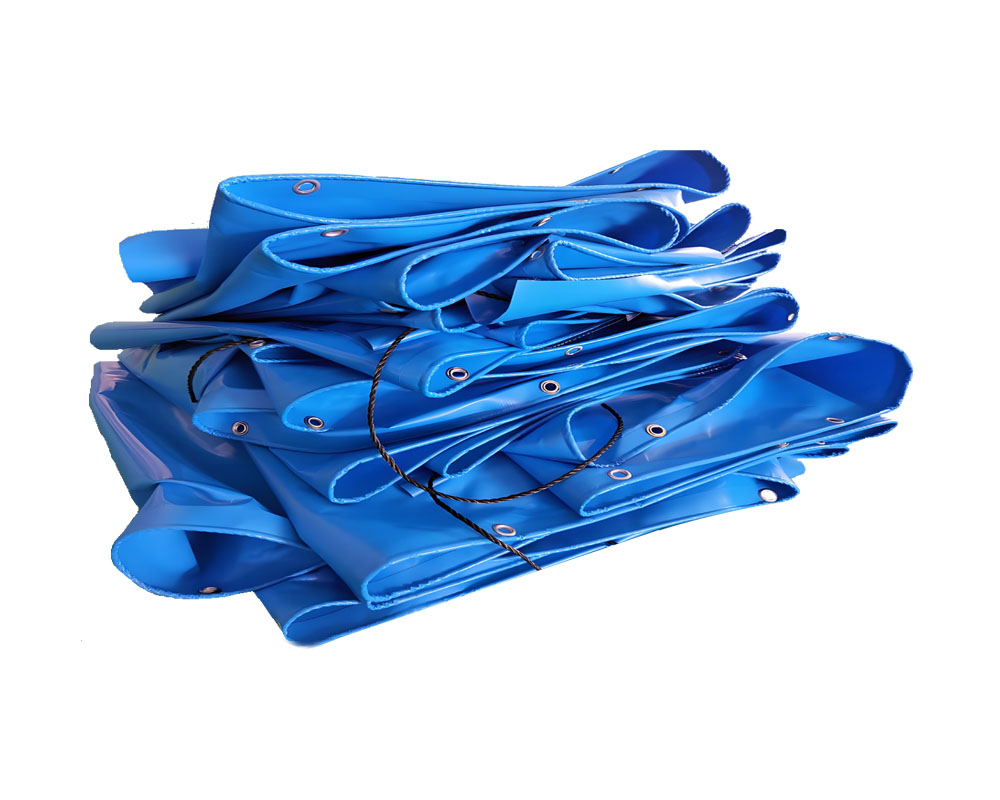

What is PVC liners?

PVC liners are a fabric lining installed in the galvanized corrugated water tank, It is flexible, durable membrane used to line the interior of water storage tanks, The primary purpose of a PVC liner is to prevent water leakage, protect water quality, and extend the life of the tank by acting as a barrier between the stored water and the tank structure.

Why Use a PVC Liner in Water Tanks?

Waterproofing & Leak Prevention

Prevents water seepage through joints, seams, or porous materials like concrete or metal.

Ensures efficient water storage with minimal loss.

Corrosion Protection

In metal tanks (e.g., corrugated galvanized steel), the liner prevents direct contact between water and metal surfaces, reducing rust and corrosion.

Improved Water Quality

Prevents contamination from tank materials leaching into the water.

Easier to clean and maintain hygienic conditions.

Cost-Effective Solution

Installing a PVC liner is often more economical than replacing or fully coating an aging tank.

Flexible & Customizable

Available in various thicknesses and can be custom-fitted to any tank shape or size.

Are PVC Liners Environmentally Friendly?

Yes, PVC is generally less environmentally friendly compared to other materials like HDPE, EPDM, or TPU, especially when considering its full lifecycle — from production to disposal.

Difference Between PVC and TPU Liner?

Feature	TPU Liner	PVC Liner
Material Type	Thermoplastic polyurethane	Polyvinyl chloride
Flexibility	Very flexible and elastic	Stiffer and less pliable
Durability	High abrasion & puncture resistance	Good, but can become brittle over time
Chemical Resistance	Excellent	Moderate (especially with plasticizers)
Toxicity / Safety	Non-toxic, safe for fish and plants	Can leach plasticizers unless food-grade
UV Resistance	Excellent (with additives)	Fair (can degrade under sunlight)
Environmental Impact	More eco-friendly, recyclable	Less eco-friendly, contains chlorine
Cost	Generally more expensive	Lower cost option
Lifespan	Longer (10–20+ years)	5–15 years depending on quality

How to repaired the PVC Liner if Damaged?

Repairing a damaged PVC liner is a relatively straightforward process that can be done with the right tools and materials.Repair Process is 1)Cut the Patch 2)Sand the Area Around the Tear3)Apply Adhesive4)Attach the Patch5)Secure the Patch.
